Transform raw steel wire into precision-perfect spheres overnight with a high-speed Cold Heading machine engineered for efficiency, consistency, and reliable production performance. Its advanced forming technology delivers accurate dimensions, smooth surfaces, and repeatable quality while reducing material waste and minimizing manual intervention. Built for demanding manufacturing environments, the machine supports fast cycle times, stable operation, and streamlined production of Steel Balls for bearings, automotive components, Industrial Equipment, and other precision applications. With robust construction, intelligent control, and dependable long-term performance, it helps manufacturers increase output, lower operating costs, and turn high-volume production goals into reality.
When I need to produce steel spheres at a steady rate, I look for more than speed. The process must control material flow, limit waste, protect the dies, and keep the finished diameter within the required range.
High-speed cold heading can support this goal. It forms steel wire or cut blanks under pressure at room temperature. The machine shapes the material through dies and punches, creating a round blank that can move to trimming, flashing, grinding, or other finishing operations.
The result is not always a fully finished sphere straight out of the heading machine. The final shape depends on the steel grade, die design, forming stages, and surface treatment.
The process usually follows a clear production path:
Wire preparation
The steel wire is selected according to the sphere’s size, load needs, and later use. Common choices include carbon steel, alloy steel, and stainless steel.
The wire surface must be clean and suitable for forming. Drawing, coating, or lubrication may be used to help the material pass through the dies with less friction.
Cutting the blank
The machine cuts the wire into short sections called blanks. Each blank must hold a controlled volume of steel.
This step affects the finished ball size. If the blank is too small, the part may not fill the die. If it is too large, excess material can create more flash and increase trimming work.
Heading and upsetting
A punch pushes the blank into a forming die. The steel flows under pressure and begins to take a rounded shape.
Many parts use more than one forming station. A gradual change in shape can reduce stress on the material and improve control over the final diameter.
Flash removal
Some sphere designs develop a thin ring of excess material around the parting line. This ring is called flash.
A trimming step removes the flash before the part moves to later finishing work. Poor trimming can leave a sharp edge or an uneven surface.
Grinding and polishing
If the application needs a smooth surface or a tighter roundness range, the formed balls may pass through grinding and polishing equipment.
This stage can correct small shape differences and remove marks left by forming or trimming. The amount of material removed depends on the drawing and the required tolerance.
Inspection
I would check diameter, roundness, surface condition, hardness, and material properties before approving a batch.
Inspection tools may include micrometers, air gauges, roundness testers, hardness testers, and visual checks under controlled lighting. The correct method depends on the part size and customer specification.
Cold heading can reduce the amount of machining needed for many steel ball designs. The machine forms the metal close to the required shape, so less material becomes cutting waste.
The process can also support stable output when the wire feed, tooling, lubrication, and inspection plan are well controlled. For repeated orders, this may help a factory maintain a more consistent production rhythm than a process based only on turning individual balls from bar stock.
Material use is another factor. A properly sized blank places most of the steel into the part instead of removing a large amount as chips.
The surface may also retain favorable material flow from the forming operation. This does not replace heat treatment or testing, but it can support the mechanical requirements of suitable applications.
A high-speed machine does not solve every production problem. I pay close attention to several points before choosing cold heading for a steel sphere project.
Some steels form more easily than others. A hard or less ductile grade may need annealing or another preparation step before heading.
If the material is not suitable for the forming load, cracks can appear around the surface or near the areas with the greatest deformation.
The blank weight must match the required part size and the forming plan. Small differences in wire diameter can change the blank volume, which can affect filling, flash, and final grinding allowance.
The die controls how the steel flows. A poor design may create uneven filling, die marks, cracks, or excessive wear.
For large balls, complex shapes, or demanding tolerances, several forming stages may provide better control than one heavy strike.
Lubrication helps reduce friction between the steel and the tooling. It also affects heat, surface quality, and die life.
The lubricant system should match the wire coating, steel grade, forming pressure, and cleaning process used later.
A worn die can change the sphere’s size and surface condition. Regular checks help identify drift before a large quantity of parts falls outside the agreed specification.
Tool life depends on steel hardness, forming load, lubrication, production speed, and maintenance habits.
A fastener and component supplier may need small carbon steel balls for a locking or positioning assembly. Turning each ball from bar stock can create a large amount of metal waste and require more cutting time.
The supplier can review a cold heading route that uses wire as the starting material. The wire is cut into measured blanks, formed through several stations, trimmed, and sent for grinding.
The engineering team may compare:
The best option depends on the drawing and annual quantity. A small part with a simple shape may suit cold heading well. A very large sphere, a fragile alloy, or a part with demanding internal features may require another process or a combined production route.
Machining starts with a larger piece of steel and removes material to create the sphere. It can offer flexibility for prototypes, small batches, or special sizes.
Cold heading shapes the material by pressure. It often fits repeated production where the part design remains stable and the tooling cost can be shared across a suitable quantity.
I would compare both routes before making a choice. A low-volume project may not justify heading dies. A long-running project may benefit from lower material waste and shorter forming cycles.
Neither process is suitable for every steel sphere. The correct decision comes from the part drawing, material, order pattern, tolerance, surface needs, and total production cost.
I recommend confirming these details before requesting a quotation:
A clear drawing reduces changes during sampling. It also helps the supplier select the right forming sequence and finishing process.
When I review a cold heading supplier, I look for evidence of process control rather than relying on speed claims alone.
Useful questions include:
A supplier that explains the forming route clearly is easier to evaluate. Sample testing can reveal issues that are not visible in a machine description.
High-speed cold heading can be a practical way to shape steel into round blanks with controlled material use and repeatable production. The phrase “perfect sphere” should still be treated as a specification goal, not a blanket promise. Final roundness, surface quality, and tolerance depend on the full process, from wire preparation to inspection.
When I source steel balls, shape consistency is one of the first details I check. A ball that looks round may still have small variations in diameter, surface finish, or hardness. Those differences can affect bearing movement, valve sealing, grinding results, and service life.
A controlled forming process helps reduce these problems.
Steel wire or bar stock is cut into small pieces. Each piece enters a forming machine, where pressure shapes it into a near-spherical blank. The blank then passes through grinding and polishing stages. These steps remove excess material and improve roundness, surface quality, and size consistency.
The result depends on more than machine speed. Material grade, cutting accuracy, forming pressure, heat treatment, grinding control, and inspection methods all have a direct effect on the finished steel ball.
I pay close attention to these points when reviewing a steel ball supplier:
Material selection
Different applications need different steel grades.
Bearing balls often use bearing steel because it offers suitable hardness and wear resistance after heat treatment. Stainless steel balls may fit environments where corrosion resistance is needed. Carbon steel balls can be used in applications where cost and basic mechanical performance are key factors.
The material certificate should match the order details. A clear supplier should be able to provide information about chemical composition and heat treatment records when requested.
Forming accuracy
The forming stage creates the basic ball shape. Poor control at this point may leave dents, flat areas, or uneven surfaces. These defects can become more difficult to remove during grinding.
A stable forming line uses fixed tooling, regular machine checks, and controlled feed sizes. I also check whether the supplier separates different material lots. Mixing lots can make later quality checks less reliable.
Grinding and polishing
Grinding improves roundness and removes forming marks. Polishing creates a smoother surface for uses such as bearings, pumps, valves, and precision hardware.
Surface finish should be matched to the application. A general industrial steel ball may not need the same finish as a ball used in a precision bearing. Asking for a surface roughness range helps avoid paying for a specification that the product does not need.
Heat treatment
Hardness affects how a steel ball performs under pressure and repeated movement. Heat treatment must be managed carefully. Excessive hardness may increase brittleness in some applications, while insufficient hardness can lead to faster wear.
I normally ask for the target hardness range, test method, and inspection frequency. These details give a clearer view than a broad statement about product quality.
Inspection
A useful inspection plan may include diameter checks, roundness measurement, surface inspection, hardness testing, and material verification.
For example, a small pump manufacturer in Germany ordered stainless steel balls for a check valve. The first sample met the diameter requirement, but several balls showed light surface marks under magnification. The supplier adjusted the polishing stage and added a surface inspection before packing. The revised sample matched the buyer’s visual and dimensional requirements.
This example shows why sample approval matters. A drawing can define size, but the sample reveals how the supplier handles the full production process.
When I compare steel ball manufacturers, I look for clear answers about:
Packaging also needs attention. Steel balls should be protected from moisture, dust, and contact damage during transport. Small parts can be packed in sealed bags, tubes, trays, or cartons based on size and quantity. Proper labeling helps the receiving team check the shipment without opening every package.
A well-planned steel ball order starts with the application, not just the diameter. I define the load, movement, environment, material preference, hardness range, and required tolerance before requesting a quotation. This gives the supplier enough information to recommend a suitable forming and finishing route.
Fast forming can support steady production, but speed should not replace process control. Smooth steel balls come from matched material, stable forming, careful grinding, and inspection that fits the application. When these details are reviewed together, buyers can make a clearer decision and reduce the risk of receiving parts that look acceptable but perform poorly.
Turning raw steel into precision balls can look like a simple change in shape. A steel rod enters one side of a production line, and a round, polished ball leaves the other side.
The actual process takes several controlled steps. Each one affects size, roundness, surface finish, and service life. When I speak with buyers, I often find that the main concern is not only production speed. They also need stable quality, clear inspection records, and a delivery plan that matches their assembly schedule.
The phrase “overnight” needs a practical explanation. A prepared batch may move from cut steel to finished balls within a short production cycle. A new order still needs material checks, tooling setup, heat treatment, grinding, inspection, and packing. The exact time depends on ball diameter, steel grade, quantity, tolerance, and the condition of the production line.
Here is how the process works.
1. Selecting the steel
Production starts with steel wire or bar stock. Common choices include carbon steel, chrome steel, stainless steel, and other grades used for specific mechanical needs.
I check several points before production begins:
A low-cost material can create higher costs later if it causes cracks, poor hardness, or unstable dimensions.
2. Cutting and forming
The steel is cut into small pieces called slugs. A cold heading machine then presses each slug into a rough spherical shape.
At this stage, the ball is not ready for use. A thin ring of extra material, known as flash, may remain around the parting line. The rough ball also has a wider size range than the finished product.
The forming stage saves material and gives the part its basic shape. It also sets the starting point for later grinding.
3. Removing the flash
The rough balls pass through a process that removes the extra metal around the surface. This step can use special plates, rollers, or other equipment based on the ball size and material.
The goal is not only to make the surface look round. The process must avoid deep marks and uneven areas that could remain after later machining.
4. Heat treatment
Heat treatment changes the structure and hardness of the steel. The exact cycle depends on the selected grade and the final use of the ball.
A bearing ball may need a hard surface with enough internal strength to handle repeated contact. A general industrial ball may use a different hardness range.
After heat treatment, the balls may show scale or slight size changes. This is normal. The next grinding steps remove the damaged surface and bring the parts closer to the required size.
5. Grinding and sizing
Grinding removes small surface errors and controls the diameter. The balls may pass through several grinding stages, with each stage using a different abrasive setup.
During this part of production, I pay attention to:
A ball can have the correct average diameter and still fail if its roundness is poor. That is why size alone does not define precision.
6. Lapping and polishing
Lapping uses a fine abrasive process to improve the surface and reduce size variation. Polishing may follow when the application requires a smoother finish.
This stage affects contact performance. In bearings, pumps, valves, and linear motion systems, surface condition can influence friction, noise, sealing, and wear.
A small surface defect may not matter in a decorative product. The same defect can create trouble inside a high-speed bearing.
7. Inspection
Finished balls are checked with measuring equipment suited to the required grade. Typical inspection items include diameter variation, roundness, surface roughness, hardness, and visual condition.
For a customer ordering 10,000 balls for a bearing assembly, a useful quality file may include:
A clear report helps the buyer connect the product to the production batch. It also makes later checks easier if a question appears during assembly.
A practical example is a small pump manufacturer that needs stainless steel balls for a valve system. The buyer may focus on delivery time, yet the material grade and ball size must match the seat design. If the ball is too soft, wear can rise. If the diameter is outside the required range, the valve may not seal as expected. A short production schedule is useful only when the finished parts fit the application.
The best production plan starts with clear information. I usually ask for the ball diameter, steel grade, tolerance, hardness range, surface requirement, order quantity, application, and preferred packing method. These details help the manufacturer choose a suitable process instead of offering a general answer.
Raw steel can become a finished precision ball within a compact production cycle, but quality does not come from speed alone. It comes from controlled forming, stable heat treatment, accurate grinding, careful inspection, and records that the buyer can understand.
When a supplier describes an “overnight” result, I recommend checking what that phrase includes. It may describe the machining time for a prepared batch. It may not include material preparation, testing, or shipping. Clear production steps give buyers a more reliable view of the actual schedule.
We has extensive experience in Industry Field. Contact us for professional advice:anqingjichuang: info@aqballgrinder.com/WhatsApp 18055626858.
ASM International 2005 ASM Handbook Volume 14A Metalworking Bulk Forming
W F Hosford and R M Caddell 2011 Metal Forming Mechanics and Metallurgy Fourth Edition
International Organization for Standardization 2014 ISO 3290-1 Rolling Bearings Balls Part 1 Steel Balls
International Organization for Standardization 2016 ISO 6508-1 Metallic Materials Rockwell Hardness Test Part 1 Test Method
ASTM International 2022 ASTM E18 Standard Test Methods for Rockwell Hardness of Metallic Materials
Joseph R Davis 1994 ASM Specialty Handbook Stainless Steels
Why settle for expensive, mediocre finishes when our advanced technology delivers a flawless, mirror-like polish? Designed for precision, consistency, and efficiency, our solution creates a smooth,

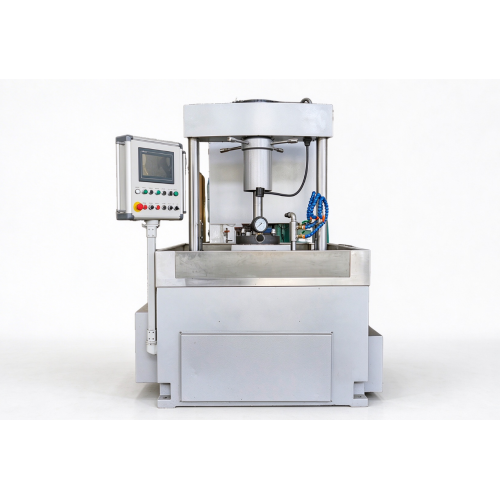

Our Spherical Base Surface Grinder is designed to handle both magnetic and non-magnetic workpieces with precision and flexibility. For ferrous parts, magnetic chucks provide secure, stable holding

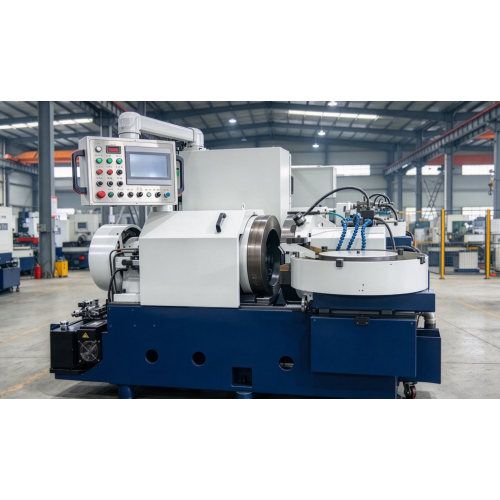

Tired of inconsistent ball sizes and the inefficiency caused by uneven grinding? Our
